Model: K960
Product size: 580*196*198mm
Product weight (bare car): 8.25kg
Outer box size: 68X27.5X36.5cm
Gross weight: 11.76kg/Net weight: 10.48kg
Full description of product functions: hinge function: forward, backward, left steering, right steering,
Push bucket up and down function, light, rotating light independent function
Product features: the hinge highly imitates the functional appearance of the real hinge,
Forward, backward, steering, push bucket activity design, can move forward,
Pull back and pull 10KG heavy objects, push bucket can push and unload 10KG,
Strong sense of experience, appearance simulation, detailed workmanship, and high-grade packaging
Basic parameters
1. Body elevation height (mm) 360.43
2. The flat height of the car body (mm) 165.62
3. The height of the body raised from the ground (mm) 53.76
4. Body length (mm) 325.83
5. The maximum length of the bucket (mm) 299.36
6. The suspension distance from the ground to the front axle (mm) 31.41
7. The distance from the tail of the car body to the rear wheel axle (mm) 80.93
8. The distance from the rear wheel to the center of the middle wheel axle (mm) 98.30
9. The distance from the center of the front wheel to the middle wheel axle (mm) 229.60
10. Distance from front traction to front wheel (mm) 85.76290.17
11. Total body length (mm)
12. The height from the ground to the headlights (mm) 198.60
13. Tire side distance (mm) 173.13
14. Overall width of the body (mm) 195.60

Battery: 18650/7500mAh7.4V 5C
Use time/minute: 40 minutes
Charging time/hour: 5-8 hours
Speed standard/hour: 0.38KM/H
Straight walking standard/2 meters: 2 meters ± 20 ± CM
Steering diameter/m: within 2 meters
Bucket lifting weight/KG: 10KG
Up and down slope/degree: ≤22 degrees

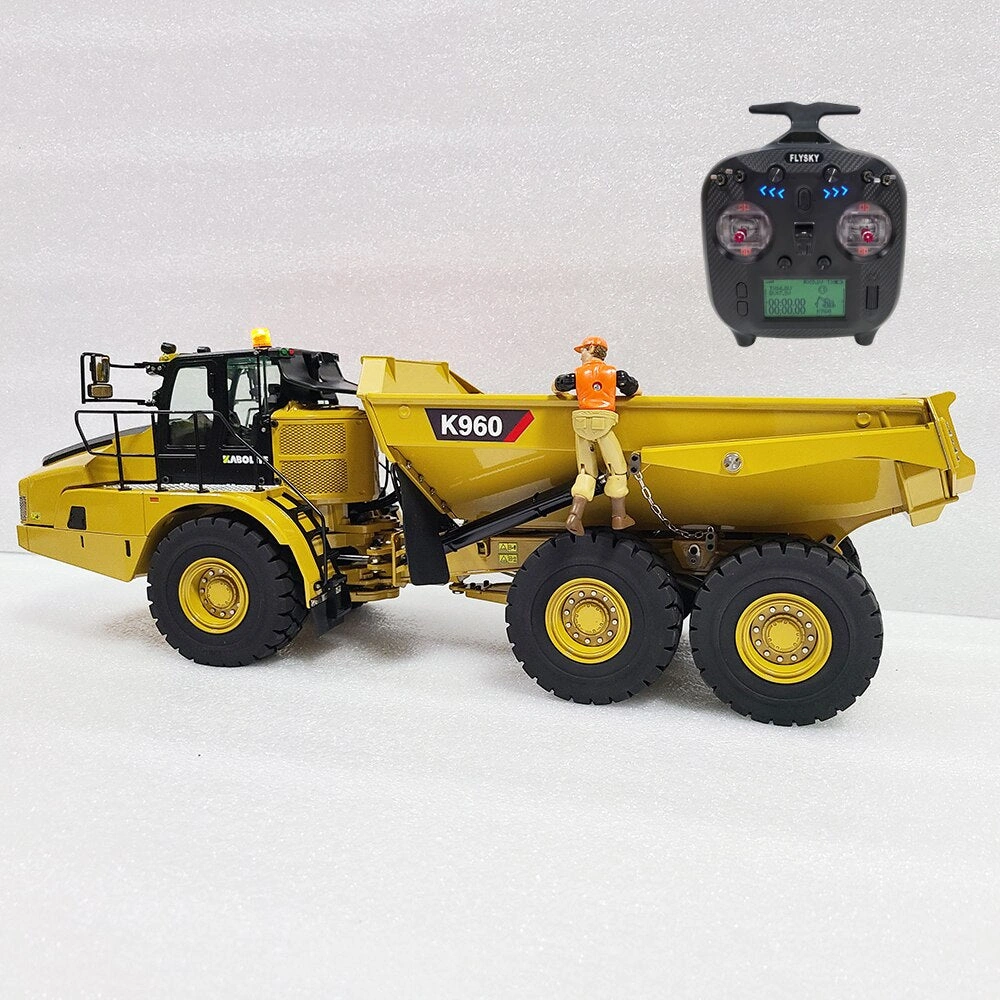

Remote control distance/meter: >25 meters

Body capacity 0.00241m3
Speed 2000-5000rpm
Total steering angle 60°
Machine quality 8.25KG
Loading capacity 5--10KG
