JDM-198 RC Hydraulic Loader – New RTR Toy with Lights & Sound!
Unleash your inner adventurer with this extraordinary piece – a meticulously crafted gem designed to ignite your senses and elevate your everyday. It’s not just an item; it’s a story waiting to be written, a feeling waiting to be discovered. Prepare to be captivated.
$1009.50
$2019.00
undefined
undefined

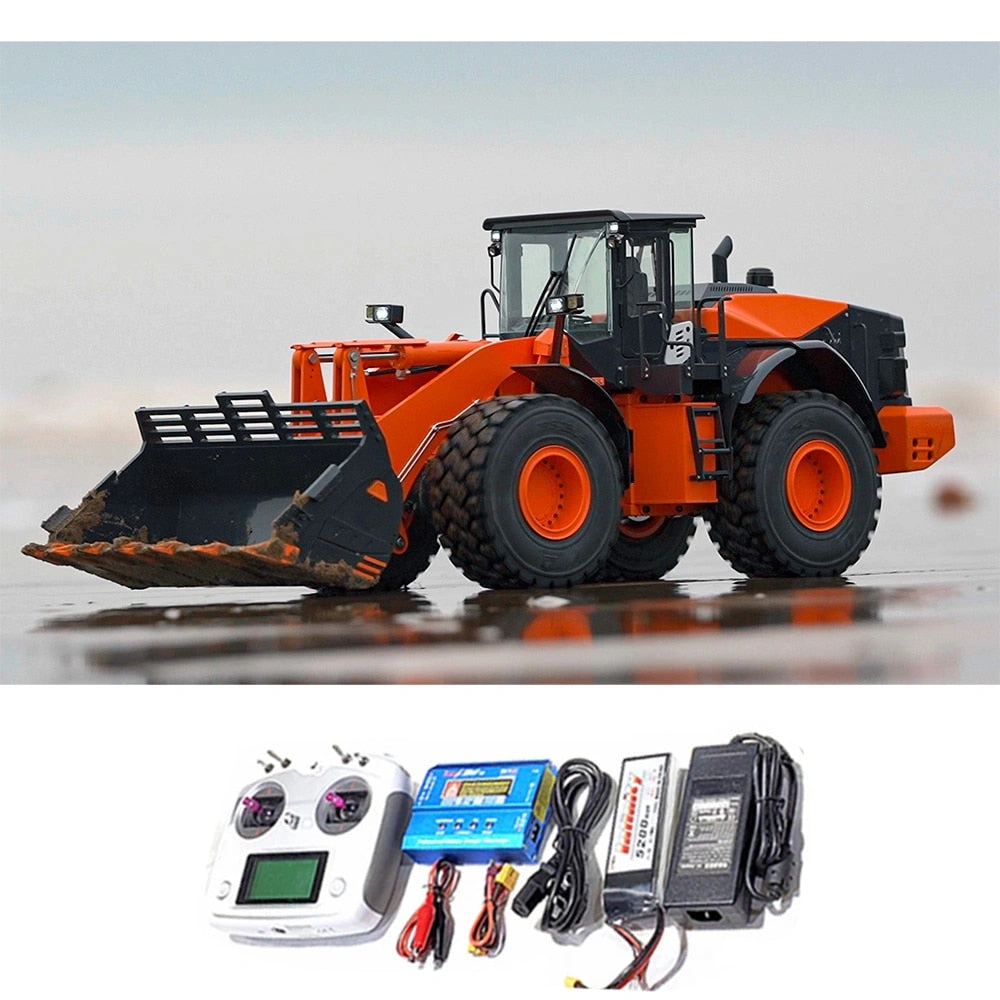

RTR-A options include batteries and chargers.
undefined
Model:

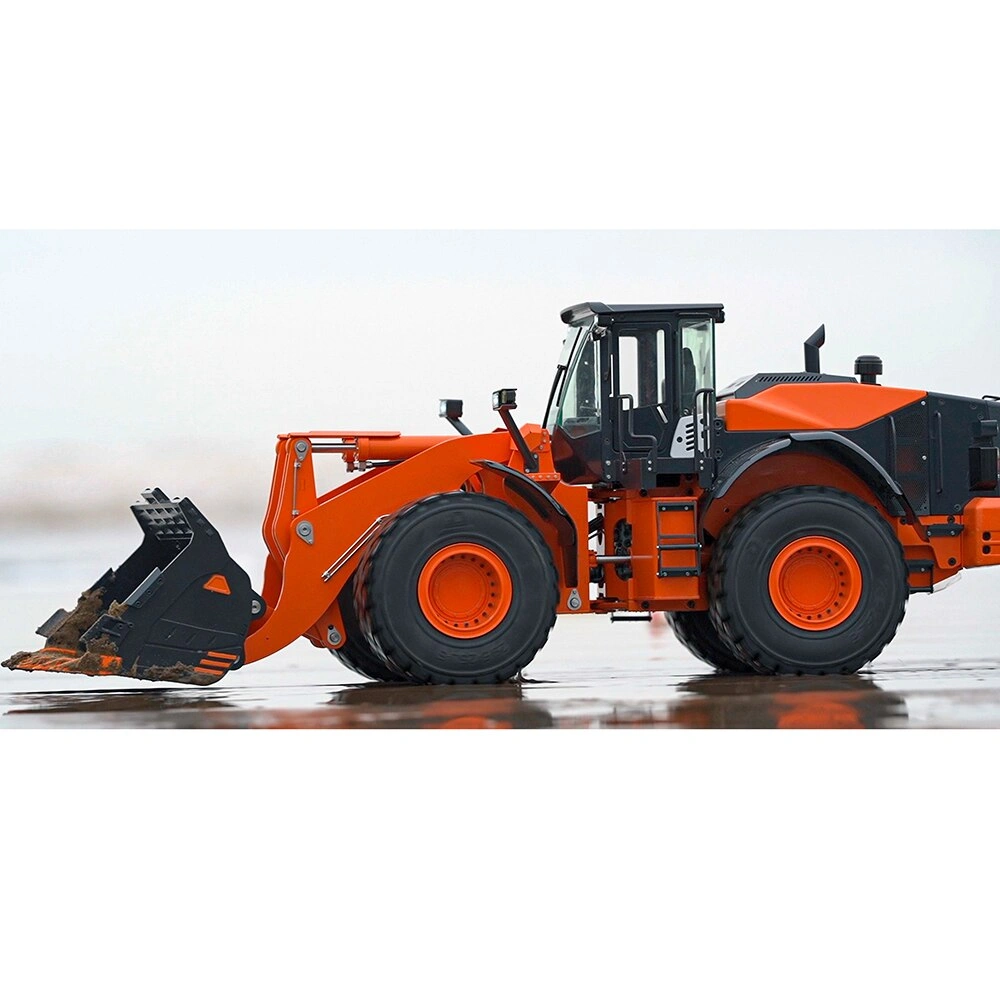

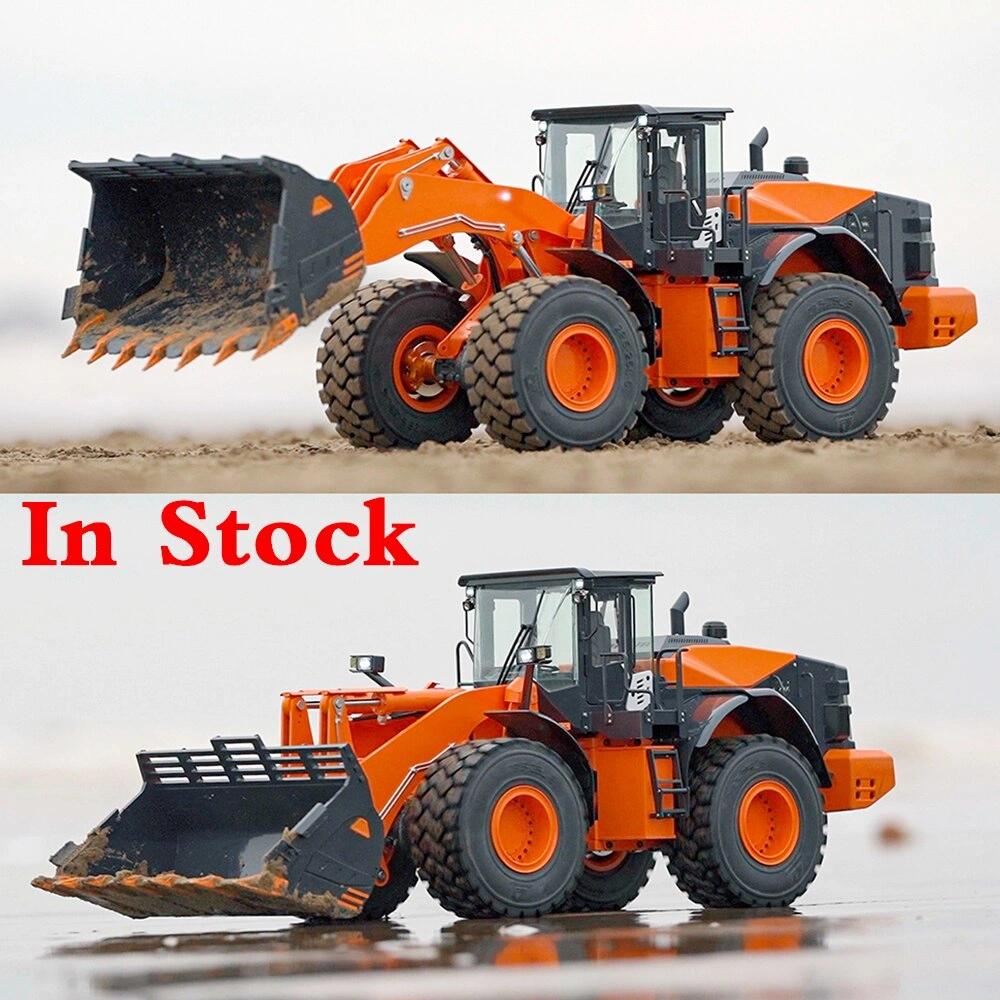

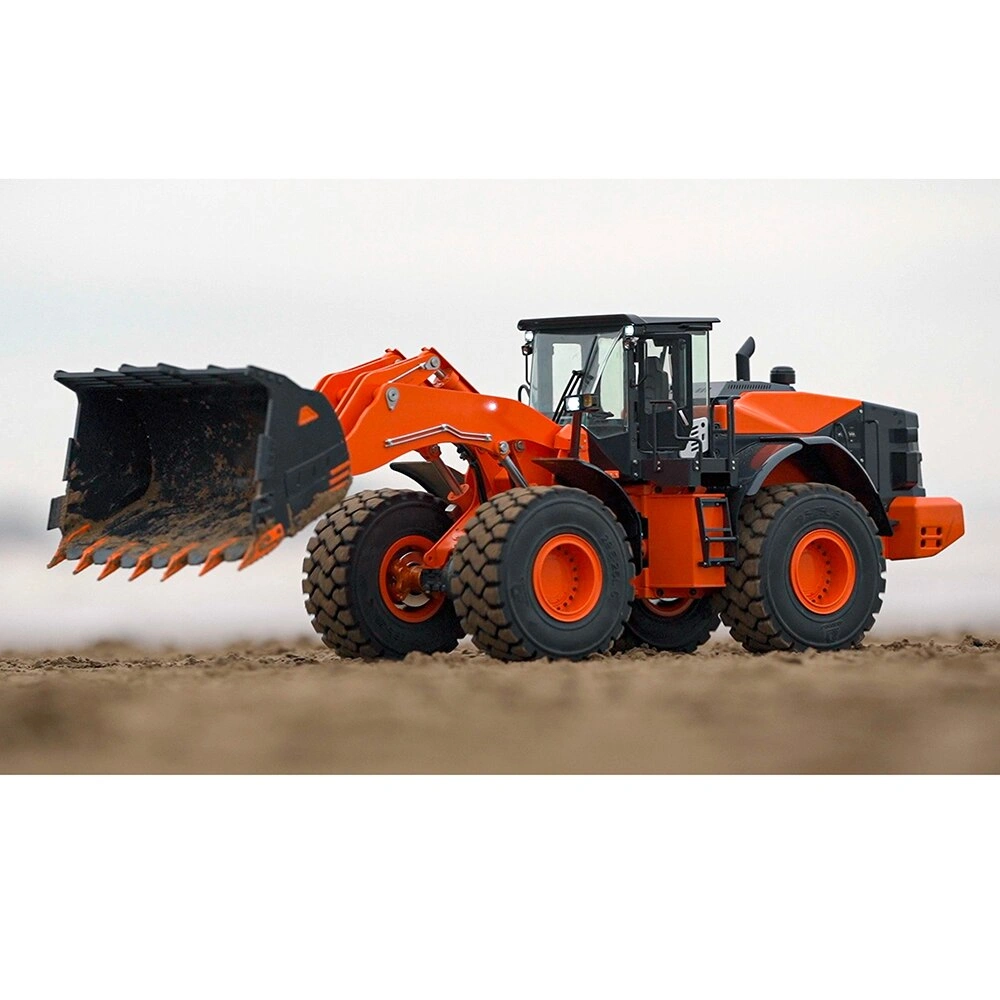

ZW370 loader
Overall dimensions: length: 710MM (flat bucket), width: 250MM (tire end), height: 268MM
Vehicle weight: 16.5KG Theoretical lifting force: 15KG (jib elevator) and theoretical traction force: 30KG.
Power voltage: 11.1V-12V, 3S lithium battery (size: within 13 * 4 * 2.5CM)
Sound system: standard
Lighting system: standard configuration, low beam lamp, high beam lamp, fog lamp and dome lamp;
Hydraulic pump: flow rate: 0.8L/min, rated pressure: 2.5MPA, ultimate pressure: 5MPA;
Directional valve: micro three-way plug type directional valve with neutral return oil;
Gearbox: planetary two gears, the first gear ratio is 3: 1, and the second gear ratio is 64: 1;
Shaft: speed ratio 16:1.10, differential lockable;
Attention: When the boom is in the lowest position and the bucket is down, the boom cannot be lifted for operation, otherwise it may damage the bucket cylinder;
Due to the heavy weight of the entire vehicle, collision must be avoided during transportation, otherwise it may damage the axle and bucket oil cylinder.
undefined
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
undefined
RTR-A options include batteries and chargers.
undefined
Model:
ZW370 loader
Overall dimensions: length: 710MM (flat bucket), width: 250MM (tire end), height: 268MM
Vehicle weight: 16.5KG Theoretical lifting force: 15KG (jib elevator) and theoretical traction force: 30KG.
Power voltage: 11.1V-12V, 3S lithium battery (size: within 13 * 4 * 2.5CM)
Sound system: standard
Lighting system: standard configuration, low beam lamp, high beam lamp, fog lamp and dome lamp;
Hydraulic pump: flow rate: 0.8L/min, rated pressure: 2.5MPA, ultimate pressure: 5MPA;
Directional valve: micro three-way plug type directional valve with neutral return oil;
Gearbox: planetary two gears, the first gear ratio is 3: 1, and the second gear ratio is 64: 1;
Shaft: speed ratio 16:1.10, differential lockable;
Attention: When the boom is in the lowest position and the bucket is down, the boom cannot be lifted for operation, otherwise it may damage the bucket cylinder;
Due to the heavy weight of the entire vehicle, collision must be avoided during transportation, otherwise it may damage the axle and bucket oil cylinder.
